组织芯片，组织微阵列

DLV483

肝癌及肝组织组合芯片，附病理分级，TNM和临床分期，48例/48点

Zoom

DLV483

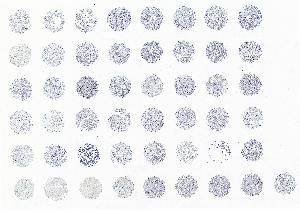

Ki_67

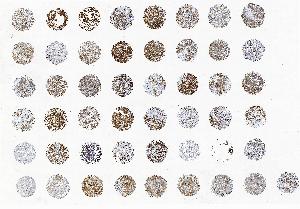

CK18

点数

例数

行数

列数

点直径(mm)

1.5

厚度(µm)

5.0

组织阵列类型

石蜡包埋

种属

人类

QA/QC

H&E and IHC confirmed

Applications

Routine histology procedures including Immunohistochemistry (IHC) and In Situ Hybridization (ISH), protocols which can be found at our support page.

Notes

1.Please keep the slides at 4 ℃ after receiving, and make experiment within 3 months will be better.

2.Bake the slides for 30 minutes at 60℃ before the experiment;

3.Please choose a gentle repair method to avoid tissue detachment.

Legend:	Liv -Liver
	Malignant (II) Malignant (IIIA) Malignant (IVA) NAT (*)

TISSUE ARRAYS DLV483

	1	2	3	4	5	6	7	8
A	LIV	LIV	LIV	LIV	LIV	LIV	LIV	LIV
B	LIV	LIV	LIV	LIV	LIV	LIV	LIV	LIV
C	LIV	LIV	LIV	LIV	LIV	LIV	LIV	LIV
D	LIV	LIV	LIV	LIV	LIV	LIV	LIV	LIV
E	LIV	LIV	LIV	LIV	LIV	LIV	LIV	LIV
F	LIV	LIV	LIV	LIV	LIV	LIV	LIV	LIV

Pos	No	Age	Sex	Organ_Anatomic_Site	Pathology_diagnosis	Grade	TNM	Stage	Type	Tumor Size	isBackUp
A1	1	52	M	Liver	Hepatocellular carcinoma with sparse necrosis	1	T3N0M0	IIIA	Malignant	1495.5	N
A2	2	38	M	Liver	Hepatocellular carcinoma	1	T3N0M0	IIIA	Malignant	985.5	N
A3	3	45	M	Liver	Hepatocellular carcinoma	1	T2N0M0	II	Malignant	5.04.04.0	N
A4	4	56	M	Liver	Hepatocellular carcinoma	1--2	T3N0M0	IIIA	Malignant	975.5	N
A5	5	40	M	Liver	Hepatocellular carcinoma	2	T3N0M0	IIIA	Malignant	151116	N
A6	6	58	M	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	*	N
A7	7	63	M	Liver	Hepatocellular carcinoma	2	T3N0M0	IIIA	Malignant	*	N
A8	8	48	M	Liver	Hepatocellular carcinoma	2	T3N0M0	IIIA	Malignant	864.5	N
B1	9	62	M	Liver	Hepatocellular carcinoma	2	T3N0M0	IIIA	Malignant	1054	N
B2	10	74	M	Liver	Hepatocellular carcinoma	2	T3N0M0	IIIA	Malignant	1098.5	N
B3	11	50	M	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	942.5	N
B4	12	24	M	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	542.5	N
B5	13	50	M	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	1153.5	N
B6	14	55	M	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	1054.8	N
B7	15	62	M	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	433	N
B8	16	57	M	Liver	Hepatocellular carcinoma	2	T3N0M0	IIIA	Malignant	7.543	N
C1	17	51	F	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	842	N
C2	18	54	F	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	127.53.5	N
C3	19	45	M	Liver	Hepatocellular carcinoma	2	T3N0M0	IIIA	Malignant	1284.5	N
C4	20	40	M	Liver	Hepatocellular carcinoma with sparse necrosis	2	T3N1M0	IVA	Malignant	5.0	N
C5	21	58	M	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	5.54.02.0	N
C6	22	53	F	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	6.05.04.0	N
C7	23	52	F	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	6.04.54.5	N
C8	24	36	M	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	1287.5	N
D1	25	36	M	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	1287.5	N
D2	26	72	F	Liver	Hepatocellular carcinoma	2	T2N0M0	II	Malignant	5.55.03.5	N
D3	27	63	M	Liver	Hepatocellular carcinoma	2--3	T3N0M0	IIIA	Malignant	*	N
D4	28	62	M	Liver	Hepatocellular carcinoma	2--3	T3N0M0	IIIA	Malignant	6.04.03.0	N
D5	29	65	F	Liver	Hepatocellular carcinoma (degeneration)	2--3	T2N0M0	II	Malignant	158.53.5	N
D6	30	51	M	Liver	Hepatocellular carcinoma with necrosis	3	T3N0M0	IIIA	Malignant	965.5	N
D7	31	62	M	Liver	Hepatocellular carcinoma	3	T2N0M0	II	Malignant	*	N
D8	32	49	M	Liver	Hepatocellular carcinoma	3	T2N0M0	II	Malignant	1074	N
E1	33	60	F	Liver	Hepatocellular carcinoma with necrosis	3	T3N0M0	IIIA	Malignant	765	N
E2	34	47	M	Liver	Hepatocellular carcinoma	3	T3N0M0	IIIA	Malignant	8.56.03.5	N
E3	35	60	M	Liver	Hepatocellular carcinoma	3	T3N0M0	IIIA	Malignant	8.075	N
E4	36	46	F	Liver	Cholangiocellular carcinoma	2	T2N1M0	IVA	Malignant	*	N
E5	37	54	M	Liver	Cholangiocellular carcinoma	2	T3N1M0	IVA	Malignant	9.0	N
E6	38	51	F	Liver	Cholangiocellular carcinoma	2	T3N1M0	IVA	Malignant	7.0	N
E7	39	51	M	Liver	Cholangiocellular carcinoma (degeneration)	3	T3N1M0	IVA	Malignant	*	N
E8	40	70	F	Liver	Cholangiocellular carcinoma	3	T3N1M0	IVA	Malignant	10*10	N
F1	41	41	F	Liver	Adjacent normal liver tissue (mild inflammation)	*	*	*	NAT	*	N
F2	42	65	F	Liver	Adjacent normal liver tissue (mild inflammation)	*	*	*	NAT	*	N
F3	43	47	M	Liver	Adjacent normal liver tissue (mild inflammation)	*	*	*	NAT	*	N
F4	44	46	M	Liver	Adjacent normal liver tissue (mild inflammation)	*	*	*	NAT	*	N
F5	45	52	F	Liver	Adjacent normal liver tissue (mild inflammation)	*	*	*	NAT	*	N
F6	46	59	M	Liver	Adjacent normal liver tissue (mild inflammation)	*	*	*	NAT	*	N
F7	47	54	M	Liver	Adjacent normal liver tissue (mild inflammation)	*	*	*	NAT	*	N
F8	48	58	M	Liver	Adjacent normal liver tissue (mild inflammation)	*	*	*	NAT	*	N
Tissue Marker
